Maison > produits > Batterie de campeur de rv > Batterie légère de remorque de campeur des batteries LiFePo4 de Chambre du lithium rv de 12V 200Ah

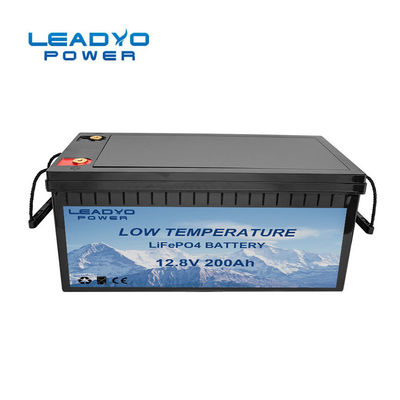

Batterie légère de remorque de campeur des batteries LiFePo4 de Chambre du lithium rv de 12V 200Ah

Détails de produit

Lieu d'origine: La Chine

Nom de marque: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Numéro de modèle: LP12V200

Conditions de paiement et d'expédition

Quantité de commande min: 1pcs

Prix: Negotiable

Détails d'emballage: Exportation UN3480 standard

Délai de livraison: 15-45 jours

Conditions de paiement: L/C, D/A, D/P, T/T, Western Union, MoneyGram, en ligne

Capacité d'approvisionnement: 60Mwh

Obtenez le meilleur prix
Point culminant: batterie légère de remorque de campeur de batteries de maison de LiFePo4 12V 200Ah rv
Tension nominale:
12.8V
Capacité nominale:
200Ah
Poids:
21kg
Taille:
480*168*240
Capacité:
150Ah 180AH 200Ah
Série:
4 séries de PCs
Équilibre:
Fonction automatique d'équilibre
Tension nominale:
12.8V
Capacité nominale:
200Ah
Poids:
21kg
Taille:
480*168*240
Capacité:
150Ah 180AH 200Ah
Série:
4 séries de PCs
Équilibre:
Fonction automatique d'équilibre
Batterie légère de remorque de campeur des batteries LiFePo4 de Chambre du lithium rv de 12V 200Ah



Light LiFePo4 12V 200Ah rv house batteries camper trailer battery





Lithium Iron Phosphate Battery (12.8V/200Ah)



Nominal Voltage 12.8 V

Nominal Capacity 200 Ah

Capacity @40A 300 min

Energy 2560 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month



Features

Self-Heating Function
The intelligent self-heating function will start
operating automatically once the battery’s core temperature drops below 0°C, and will stop heating when the temperature rises to
5°C. BTW, the start heating temperature and stop heating temperature can customized.
With self-heating function, the batteries can be charged effortlessly in the freezing environment.





ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 200Ah   Weight 21kg
Nominal Energy 2560Wh   Case Dimension(L*W*H)4 480*168*240mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @30A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  4PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 150A   Max Charge Current 150A
Peak Current 500A   Recommended Charge Current 40A - 100A
Discharge pulse current 600±50A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V    End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 & BIS for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60



Batterie légère de remorque de campeur des batteries LiFePo4 de Chambre du lithium rv de 12V 200Ah 0



Batterie légère de remorque de campeur des batteries LiFePo4 de Chambre du lithium rv de 12V 200Ah 1



FAQ



1. Are you factory or trade company?
We are professional manufacturer in lithium battery field,with professional research anddevelopment team.

2.What is your main product?
Main products of protection circuit module for battery pack,especially cylindrical Li-ion battery.Li-ion polymer battery pack and LifePO4 battery.

3.How to proceed with an order?
Firstly, let us know your requirement or application.Secondly,we quote according to your requirements or our
suggestions.Thirdly,customer confirms the samples and place a deposit for formal order. Fourthly,we arrange the production.

4.When you delivery order?
Normally 5-7 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you accept OEM?
