Détails de produit
Lieu d'origine: La Chine
Nom de marque: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Numéro de modèle: LP24V300
Conditions de paiement et d'expédition
Quantité de commande min: 1pcs
Prix: Negotiable
Détails d'emballage: Exportation UN3480 standard
Délai de livraison: 15-45 jours
Conditions de paiement: L/C, D/A, D/P, T/T, Western Union, MoneyGram, en ligne
Capacité d'approvisionnement: 60Mwh
Tension nominale: |
24V |
Capacité nominale: |
300Ah |
Poids: |
65kg |
Dimension: |
L705*W305*H260mm |
Courant continu: |
200A |
courant de pointe: |
500A |
Cas: |
Caisse en métal |
Tension nominale: |
24V |
Capacité nominale: |
300Ah |
Poids: |
65kg |
Dimension: |
L705*W305*H260mm |
Courant continu: |
200A |
courant de pointe: |
500A |
Cas: |
Caisse en métal |

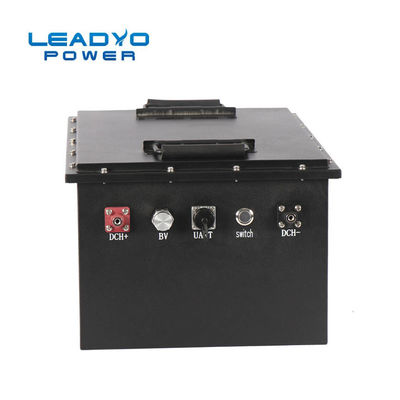

24V 300Ah LiFePO4 battery built in LCD monitoring systems for solar application
Lithium Iron Phosphate Battery 24V 300Ah
Nominal Voltage 25.6V
Nominal Capacity 300 Ah
Capacity @ 60A 300 min
Energy 7680 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
Longer battery life – 5000times life cycle @60%DOD, 5 times more than lead acid batteries
Free of charge memory
Steady discharge and charge performance.
Outstanding thermal stability
Wide temperature performance
Short circuit protection
Over charge and over discharge protection
Over current protection
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 300Ah | Weight | 65kg | |
| Nominal Energy | 7680Wh | Case Dimension(L*W*H) | 705*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 500A | Recommended Charge Current | 60A - 150A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
