Détails de produit
Lieu d'origine: La Chine
Nom de marque: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Numéro de modèle: LP48V150
Conditions de paiement et d'expédition
Quantité de commande min: 1pcs
Prix: Negotiable
Détails d'emballage: Exportation UN3480 standard
Délai de livraison: 15-45 jours
Conditions de paiement: L/C, D/A, D/P, T/T, Western Union, MoneyGram, en ligne
Capacité d'approvisionnement: 60Mwh
Tension nominale: |
51.2V |
Capacité nominale: |
150Ah |
Poids: |
68kg |
Dimension: |
705*305*260mm |
Courant de charge maximum: |
150A |
Courant dérivé maximum: |
150A |
Cas: |
Caisse en métal |
Garantie: |
2 ans |
Terminaux: |
M8 |
Tension nominale: |
51.2V |
Capacité nominale: |
150Ah |
Poids: |
68kg |
Dimension: |
705*305*260mm |
Courant de charge maximum: |
150A |
Courant dérivé maximum: |
150A |
Cas: |
Caisse en métal |
Garantie: |
2 ans |
Terminaux: |
M8 |

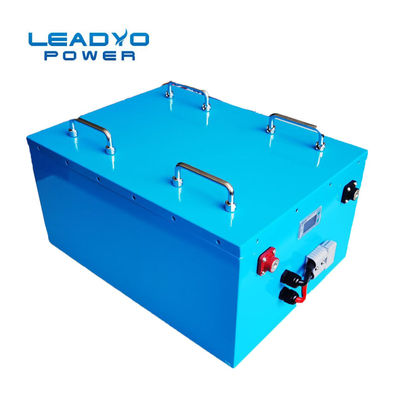

Electric Sightseeing Car Battery LiFePO4 150Ah 48 volt lithium ion battery
1) Steel Case design, Sturdy and Durable.
2) Handle design, easy to carry and install.
3) Can with Bluetooth or LCD display, monitoring the battery status.
4), Light weight 48V 150Ah around 65kg only
5) With longer lifespan around 10 years.
Custom-made BMS With full over protection ,balancing function and short circuit protection
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 150Ah | Weight | 68kg | |
| Nominal Energy | 7680Wh | Case Dimension(L*W*H) | 705*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
| Capacity | @30A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 30A - 75A | |
| Discharge pulse current | 700±10A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
