Maison > produits > Batteries de chariot de golf > M8 Terminal Electric Golf Cart Lithium Battery 48V 30ah Lifepo4 Battery Pack

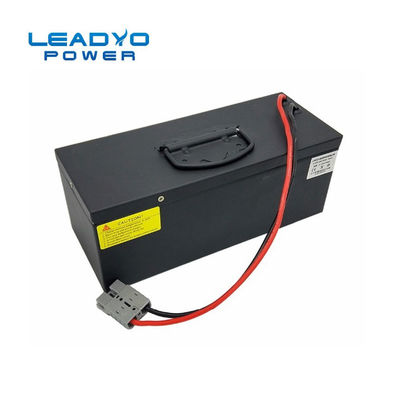

M8 Terminal Electric Golf Cart Lithium Battery 48V 30ah Lifepo4 Battery Pack

Détails de produit

Lieu d'origine: La Chine

Nom de marque: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Numéro de modèle: LP48V030

Conditions de paiement et d'expédition

Quantité de commande min: 1pcs

Prix: Negotiable

Détails d'emballage: Exportation UN3480 standard

Délai de livraison: 15-45 jours

Conditions de paiement: L/C, D/A, D/P, T/T, Western Union, MoneyGram, en ligne

Capacité d'approvisionnement: 60Mwh

Obtenez le meilleur prix
Point culminant: LiFePO4 30Ah 60Ah paquet de batterie au lithium de 48 volts pour le chariot de golf électrique
Tension nominale:
51.2V
Capacité nominale:
30Ah
Poids:
15kg
Courant de charge maximum:
30A
Courant dérivé maximum:
30A
Cas:
Métal case/PVC
Connecteur:
Anderson ou d'autres
Tension nominale:
51.2V
Capacité nominale:
30Ah
Poids:
15kg
Courant de charge maximum:
30A
Courant dérivé maximum:
30A
Cas:
Métal case/PVC
Connecteur:
Anderson ou d'autres
M8 Terminal Electric Golf Cart Lithium Battery 48V 30ah Lifepo4 Battery Pack



LiFePO4 30Ah 60Ah 48 volt lithium battery pack for electric golf cart





Lithium Iron Phosphate Battery 48V 30Ah



Nominal Voltage 51.2V

Nominal Capacity 30 Ah

Capacity @ 6A 300 min

Energy 1536 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.





We provide:

  1. Research and development,Design and manufactur for lithium batteries.
  2. Custom-made BMS can be with Bluetooth,RS232,RS485,UART,SMbus,I2C,HDQ etc
  3. UN, UL & IEC testing and certification
  4. Large engineering department and testing lab
  5. State-of-the-art 86,000 ft2 production facility
  6. SmarTEC is an ISO 9001 certified, and an new and high-tech enterprise





ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 51.2V   Terminal Type M8
Nominal Capacity 30Ah   Weight 15kg
Nominal Energy 1536Wh   Case Dimension(L*W*H) customized
Internal Resistance ≤30 @50% SOC   Case Type Metal case/ PVC
Capacity @6A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  NO   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 30A   Max Charge Current 30A
Peak Current 80A   Recommended Charge Current 6A - 15A
Discharge pulse curret 100±10A (31±10ms)   End of Charge voltage 57.6V±0.2V
BMS Low Voltge Cut-off 40V   End of discharge voltage 40V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60



M8 Terminal Electric Golf Cart Lithium Battery 48V 30ah Lifepo4 Battery Pack 0







FAQ



Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.



Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.



Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.



Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.



Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
